John Deere约翰迪尔强鹿节温器与节温器盖零件图册

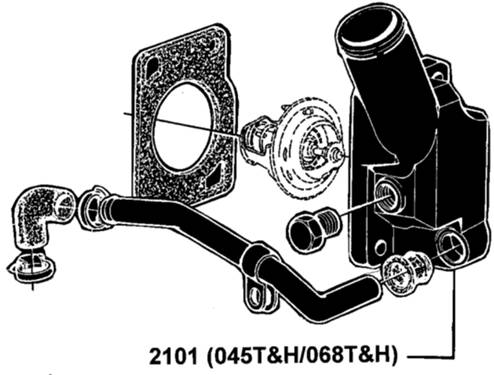

John Deere约翰迪尔强鹿6068 3.9-6.8L节温器与节温器盖零件图册

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 19M7806 SCREW 1 X X M10 X 50, (10.9)

2 19M7786 SCREW 1 X X M10 X 30, (10.9)

3 .................. COVER 1 X X MARKED R131016, (ORDER R501130, RE46684

AND (2) R123226)

R501130 COVER 1 X X

4 R123226 GASKET 1 X X

5 R135896 GASKET 1 X X

6 RE46684 PLUG AR X X M14 X 1.5

7 51M7041 O-RING AR X X 11.300 X 2.200 MM

8 R501144 TUBE 1 X X (ALSO ORDER (2) R123226)

9 R123323 CLAMP 1 X X

10 19M7788 SCREW 1 X X M12 X 25, (10.9)

11 R123324 CLAMP 1 X X

12 19M7801 SCREW 1 X X M8 X 60, (10.9)

13 28H860 WASHER 1 X X 0.423" X 0.675" X 3/8"

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 RE64354 THERMOSTAT 1 X X 82° C (180° F)

1 RE64354 THERMOSTAT 1 X 82°C (180°F)
