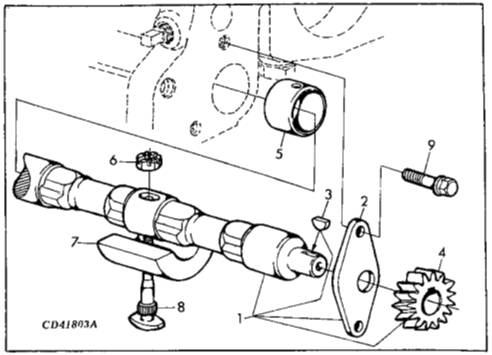

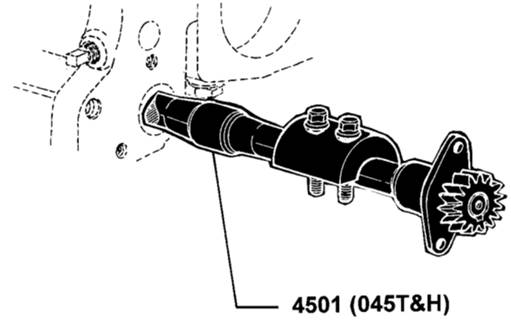

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 .................. BALANCER SHAFT 1 X MARKED R134357, ORD RE502446 AND RE502447,

RH

.................. BALANCER SHAFT 1 X MARKED R134357, ORD RE502446 AND RE502447,

LH

2 R116078 PLATE 1 X

3 26M4224 SHAFT KEY 1 X 4 X 16 MM

4 R120637 HELICAL GEAR 1 X Z = 15, RH

R120639 HELICAL GEAR 1 X Z = 15, LH

5 R115299 BUSHING 6 X

6 T15634 NUT 4 X

7 R134358 WEIGHT 4 X

8 T28745 BOLT 4 X

9 19M7864 SCREW 4 X M8 X 12, (10.9)

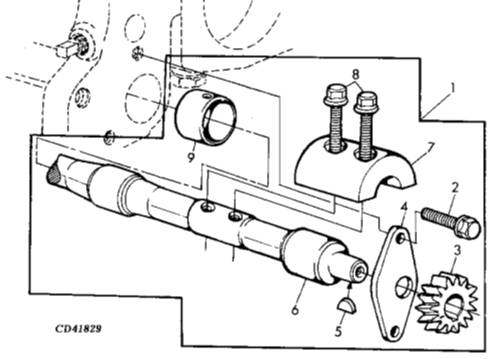

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 RE502447 BALANCER SHAFT 1 X WITH INSTALLATION INSTRUCTIONS, RH

RE502446 BALANCER SHAFT 1 X WITH INSTALLATION INSTRUCTIONS, LH

2 19M7864 SCREW 2 X M8 X 12, (10.9)

3 R120637 HELICAL GEAR 1 X Z = 15, RH

R120639 HELICAL GEAR 1 X Z = 15, LH

4 R116078 PLATE 1 X

5 26M4224 SHAFT KEY 1 X 4 X 16 MM

6 .................. BALANCER SHAFT 1 X MARKED R500668 , RH , ORD RE502447

.................. BALANCER SHAFT 1 X MARKED R500266 , LH , ORD RE502446

7 R500650 WEIGHT 2 X

8 19M7798 SCREW 4 X M8 X 40, (10.9)

9 R115299 BUSHING 3 X
