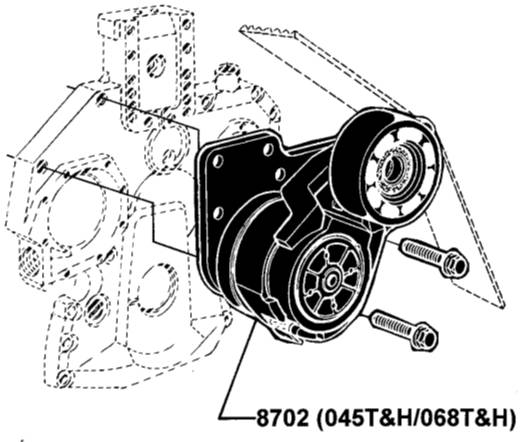

风扇张紧轮

John Deere约翰迪尔强鹿柴油发动机风扇张紧轮配件销售维修维护技术零件资料手册

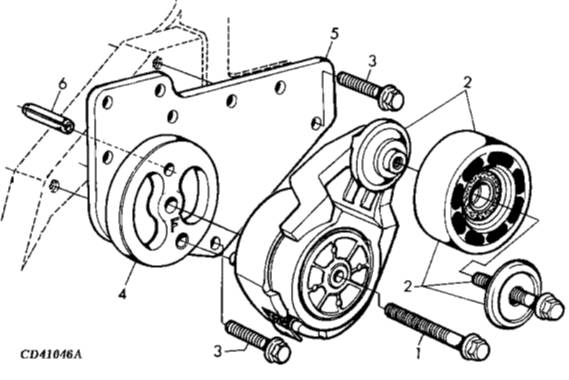

KEY PART NO. PART NAME QTY SERIAL NO. H H REMARKS

1 19M8131 SCREW 1 X X M10 X 70, (10.9)

2 RE70536 SHEAVE 1 X X

3 19M7801 SCREW 2 X X M8 X 60, (10.9)

4 R500321 SPACER 1 X X

5 R132168 SUPPORT 1 X X

6 34M7061 SPRING PIN 1 X X 8 X 20 MM
