约翰迪尔强鹿柴油发动机曲轴瓦配件销售维修维护技术零件资料手册

曲轴瓦

John Deere约翰迪尔强鹿柴油发动机曲轴瓦配件销售维修维护技术零件资料手册

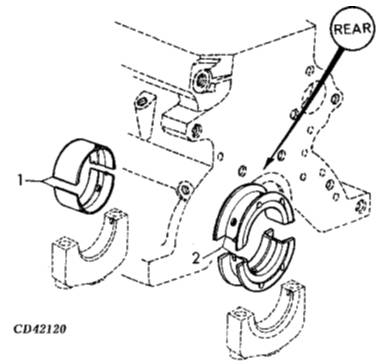

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 AT21140 BEARING 4 X (KIT (2) T23214) STD

.................. BEARING AR X (A) US -0.254MM, MARKED T23554, ORD RE27353

2 AT21139 BEARING 1 X (KIT (2) T23215) STD, REAR

.................. BEARING AR X (A) US -0.254MM, REAR,MARKED T23576, ORD

RE27351 AND RE13571

(A) GRINDING GUIDELINE : CTM3274
