连杆、连杆瓦、连杆铜套

John Deere约翰迪尔强鹿柴油发动机连杆、连杆瓦、连杆铜套配件销售维修维护技术零件资料手册

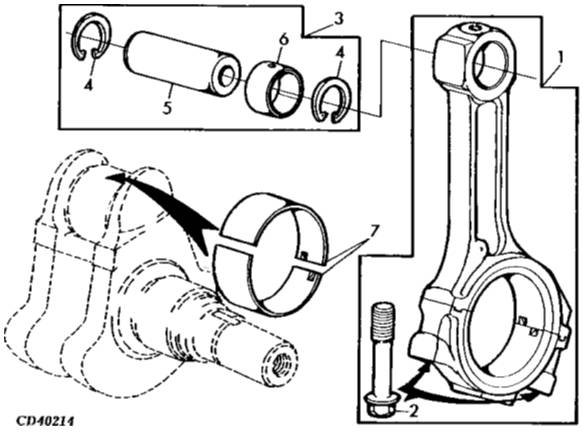

KEY PART NO. PART NAME QTY SERIAL NO. D T REMARKS

1 RE21076 CONNECTING ROD 4 X (MARKED R80034)

RE42733 CONNECTING ROD 4 X (MARKED R80034)

2 R80033 SCREW 2 X X

3 RE63914 PISTON PIN 4 X KIT

RE63913 PISTON PIN 4 X KIT

4 M41029 SNAP RING 2 X PACKG (6)

R54114 SNAP RING 2 X PACKG (6)

5 .................. PISTON PIN 1 X OD 35MM, ORD RE63914

.................. PISTON PIN 1 X OD 41MM, ORD RE63913

6 .................. BUSHING 1 X ORD RE63914

.................. BUSHING 1 X ORD RE63913

7 .................. BEARING 4 X MARKED T20011, STD,ORDER RE27348

RE27348 BEARING 4 X (KIT (2) R83379) STD

RE27349 BEARING AR X X (A) (KIT (2) R87748) US -0.254MM

(A) GRINDING GUIDELINE : CTM3274
